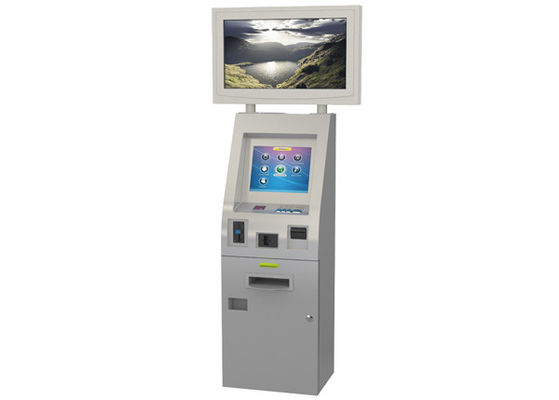

Semi Outdoor Card Payment LCD Digital Signage with 42 inch Avdertising LCD Display

5 Units
MOQ
Varies based on different options
Price
Semi Outdoor Card Payment LCD Digital Signage with 42 inch Avdertising LCD Display
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Mall Airport Station Coin Bill Card Payment Kiosk
Application: Indoor & Semi-Outdoor
Type: Floor Stand
OEM/ODM Order: Acceptable
High Light:

outdoor business signs

,

outdoor information kiosk

Basic Infomation
Place of Origin: China
Brand Name: Winnsen
Certification: CE, FCC
Model Number: PA-116
Payment & Shipping Terms
Packaging Details: Standard Export Package
Delivery Time: 20 Working Days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 3000 sets per month
Product Description

Semi Outdoor Card Payment Touch Screen Kiosk with 42 inch Avdertising LCD Display



Application
•   Mall Airport Station Coin Bill Card Payment Kiosk ideal to be deployed for paying utility (water, electricity and gas) bill, TV bill, mobile phone bill, transportation bill, tax, and etc.
•   Suitable to be placed at shopping malls, business buildings, schools, libraries, universities, airports and railway stations.

Mall Airport Station Coin Bill Card Payment Kiosk with 42 inch Avdertising LCD  Configuration
•   Regular or Industrial PC (specification may differ according to different applications), Industrial power supply.
•   15", 17", 19" or above TFT LCD with touch screen.
•   Magnetic, smart or IC card reader
•   Stainless steel encrypted pin pad, PCI certified.
•   Thermal receipt printer with auto cut, 80mm paper width.
•   42 inch LCD advertising displayer system
•   Built-in speakers 2*5W
•   Steel enclosure, solid structure with door lock for inner components. Environment-protective paint finishing, various colors available.
•   CE, FCC approval



Specifications

 Steel Body

1. High quality steel material.

2. Solid structure with door lock for inner components.

3. Environment-protective paint finishing in various colors.

4. Optional wheels or wedge anchor securing onto the ground.

 Computer

 Industrial motherboard imported from Taiwan, dual core CPU, RAM 1G, HDD 500G

 42 inch LCD for advertising

 1. Display Type: 42 inch Active Matrix TFT LCD

 2. Resolution: 1920 x 1080

 3. Brightness: 400 cd/m2

 4. Colors: 16.7 million

 5. Response Time: 5 ms

 6. JPEG/MPEG1/MPEG2/MPEG3/MPEG4 formats supported

 7. CF card and USB supported

 8. Play list functions supported

 9. Circularly play supported

 10. Weekly timing and timer for AUTO Power on/off operation

 11. Remote control function

 Lower touch screen monitor

 1. Display Type: 17 inch Active Matrix TFT LCD

 2. Resolution: 1280 x 1024

 3. Brightness: 300 cd/m2

 4. Colors: 16.7 million

 5. Response Time: 5 ms

 6. View angle: 160(horizontal); 160(vertical)

 7. Touch Technology: Surface Acoustic Wave (SAW)

 8. Touch Sensitivity: Fixed

 Bill acceptor

 Identify and receive bills of different countries, such as US Dollar, Euro, Ruble...

 Coin acceptor

 Identify and receive coins of different countries, such as US Dollar, Euro, Ruble...

 Card reader

 Read credit card

 Thermal printer

 1. 80mm paper width

 2. Automatic cutter guaranteeing 1mm cuts

 3. Patented anti-jamming and anti tear-off systems

 4. Multi-position paper roll

 Built-in speakers

 2*3W

 Working Voltage

 100-240V, 50/60Hz

 Overall dimension

 550(W) X 420(D) X 2000(H) mm

 Net weight

 98kg

 Approval

 CE, FCC





Other optional components that can be integrated in this payment kiosk to meet with your special requests.

1)  OEM LOGO or LED light box.

2)  DOT matrix invoice printer, 80mm paper width, auto cut.

3)  A4 Laser Printer

4)  Camera

5)  Coin acceptor

6)  Coin dispenser

7)  Check acceptor

8)  Passport reader

9)  Signature pad

10)  Barcode scanner

11)  Card printer

12)  Card dispenser

13)  Metal keyboard with tracking ball

14)  Telephone

15)  Wireless modems (GSM/GRMS)

16)  Bluetooth

17)  UPS

18)  Open door alarm system



Full services are offered according to your concept – design, sampling, mass production, shipment, and after sale service.
