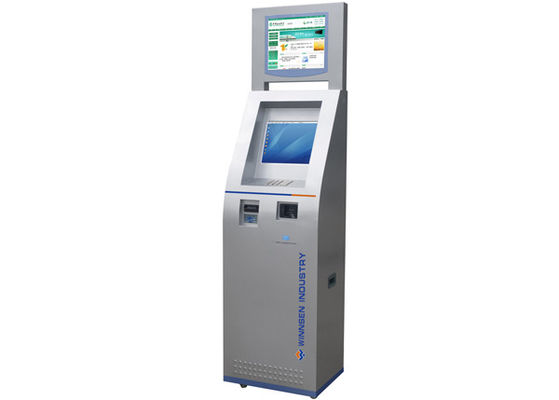

Touch Screen Credit Card Payment Interactive Information Kiosk for Bank / Shopping Mall

Touch Screen Credit Card Payment Interactive Information Kiosk for Bank / Shopping Mall

Product Details:

Place of Origin: China
Brand Name: Winnsen
Certification: CE, FCC
Model Number: PA-101

Payment & Shipping Terms:

Minimum Order Quantity: 5 Units
Price: Varies based on different options
Packaging Details: Standard Export Package
Delivery Time: 20 Working Days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 3000 sets per month
Contact Now
Detailed Product Description
Product Name: Coin Bill Credit Card Payment Touch Screen Kiosk Application: Indoor & Semi-Outdoor
Type: Floor Stand OEM/ODM Order: Acceptable

Touch Screen Credit Card Payment Interactive Information Kiosk for Bank / Shopping Mall





This Self-service Touch Screen Coin Bill Credit Card Payment Kiosk is ideal to be deployed for paying utility (water, electricity and gas) bill, TV bill, mobile phone bill, transportation bill, tax, and etc. This terminal is suitable to be placed at banks, shopping malls, business buildings, schools, libraries, universities, airports and railway stations.





Specifications:

 Steel Body

1. High quality steel material.

2. Solid structure with door lock for inner components.

3. Environment-protective paint finishing in various colors.

4. Optional wheels or wedge anchor securing onto the ground.

 Computer

 Industrial motherboard imported from Taiwan, dual core CPU, RAM 1G, HDD 500G

 19 inch LCD for advertising

 1. Display Type: 19 inch Active Matrix TFT LCD

 2. Resolution: 1366 x 768

 3. Brightness: 300 cd/m2

 4. Colors: 16.7 million

 5. Response Time: 5 ms

 6. JPEG/MPEG1/MPEG2/MPEG3/MPEG4 formats supported

 7. CF card and USB supported

 8. Play list functions supported

 9. Circularly play supported

 10. Weekly timing and timer for AUTO Power on/off operation

 11. Remote control function

 Lower touch screen monitor

 1. Display Type: 17 inch Active Matrix TFT LCD

 2. Resolution: 1280 x 1024

 3. Brightness: 300 cd/m2

 4. Colors: 16.7 million

 5. Response Time: 5 ms

 6. View angle: 160(horizontal); 160(vertical)

 7. Touch Technology: Surface Acoustic Wave (SAW)

 8. Touch Sensitivity: Fixed

 Cash acceptor

 Identify and receive bills of different countries, such as US Dollar, Euro, Ruble...

 Card reader

 Read credit card

 Pinpad

 1. Stainless steel material

 2. With etched and colored graphics

 3. PCI certified, encrypted key and self destruction function with decrypted key

 Thermal printer

 1. 80mm paper width

 2. Automatic cutter guaranteeing 1mm cuts

 3. Patented anti-jamming and anti tear-off systems

 4. Multi-position paper roll

 Built-in speakers

 2*3W

 Working Voltage

 100-240V, 50/60Hz

 Overall dimension

 550(W) X 420(D) X 2000(H) mm

 Net weight

 90kg

 Approval

 CE, FCC





Other optional components that can be integrated in this payment kiosk to meet with your special requests.

1)  OEM LOGO or LED light box.

2)  DOT matrix invoice printer, 80mm paper width, auto cut.

3)  A4 Laser Printer

4)  Camera

5)  Coin acceptor

6)  Coin dispenser

7)  Check acceptor

8)  Passport reader

9)  Signature pad

10)  Barcode scanner

11)  Card printer

12)  Card dispenser

13)  Metal keyboard with tracking ball

14)  Telephone

15)  Wireless modems (GSM/GRMS)

16)  Bluetooth

17)  UPS

18)  Open door alarm system



Full services are offered according to your concept – design, sampling, mass production, shipment, and after sale service.
