Logistic Parcel Delivery Lockers / Electronic Intelligent Parcel Lockers

Place of Origin China
Brand Name Winnsen
Certification CE, FCC
Model Number EL201A-32A
Minimum Order Quantity 1 piece
Price Varies based on different options
Packaging Details Standard Export Package
Delivery Time Depending on stock availability
Payment Terms T/T
Supply Ability 300 pieces per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Material CRS Payment Coin, Bill
Structure Standard Parcel Locker Structure Online Remotely Control Function
Voltage 100-240V Application Parcel Delivery
High Light

parcel collection lockers


automated parcel lockers

Leave a Message
Product Description

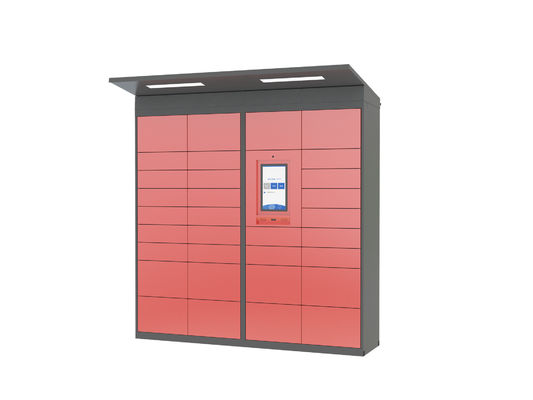

Intelligent Logistic Parcel Delivery Locker, electronic locker


1.material: Cold Rolled Steel

2.Industrial control host: CPU intel ,2GRAM/ 16G storage/2Gigabit RJ45 ports/6 RS232ports/ several USB ports/DC24v input

3.High sensitive tough screen,7 inch,15inch,17inch,19inch,22inch,42inch can be selected

4.Optional peripheral:

High sensitive scanner: one-dimension code, two-dimension code .

IC card reader.

Stainless steel metal keyboard

5.Lock : electronic control lock with patent, over 100,000 times.

6.Optional equipment,

UPS power: last over 12 hours when the power off

monitoring system :24 hours non-stop video surveillance, monitor the surrounding environment of the locker.

led advertising machine

7.Voice prompts, loudspeaker.

8.network: Adapt to GPRS, CDMA, 3G, WIFI, LAN .

9.Door sensor & LED light, detect the door open or closed. The light helps customer to pick up package.


Work flow can be modified, you can contact us for the detail.



Control unit Computer control
Screen 15" or 32" touch screen
Accessment PIN code access
Working voltage 100-240V, 50/60Hz
Hardware option Printer
Operating temperature 0 ~ 50 ℃
Certificates CE, FCC
Suitable place Indoor



Full services are offered according to your concept – design, sampling, mass production, shipment, and after sale service.


About us
Winnsen specialises in customising selfservice locker solution to suit your requirements. Our electronic locker has our own design, programme, and produced system, provides a more secure, convenient and digital storage solution, eliminate keys and simplify public storage service.

You provide requirements, we do design work, hardware and software work, you get the benefits!
