Password Postal Smart Parcel Delivery Locker For E-Commerce 15.6 Inch Stainless Steel

Place of Origin China
Brand Name Winnsen
Certification CE, FCC
Model Number EL201A-32A
Minimum Order Quantity 1 Unit
Price Determined by options
Packaging Details Export Standard Pallet
Delivery Time 20 Working Days
Payment Terms L/C, T/T, Western Union
Supply Ability 3000 Units Per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Description Smart Parcel Locker Application Outdoor And Indoor Use
Material Steel Or Stainless Steel Touch Screen 15.6 Inch
Function Parcel Delivery Size Can Be Customized
High Light

Password Postal Smart Parcel Delivery Locker


Stainless Steel Smart Parcel Delivery Locker


15.6Inch Smart Parcel Locker

Leave a Message
Product Description

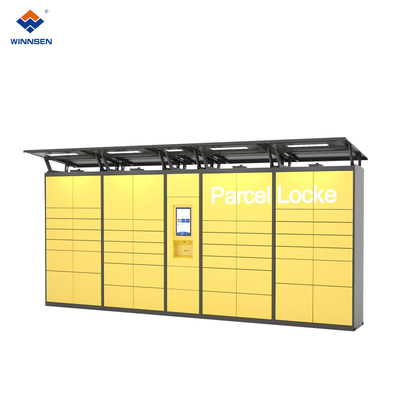

Password postal smart parcel delivery locker for E-commerce online purchase



Winnsen Parcel Locker Features

  • Sensitive touchscreen
  • Industrial computer
  • Barcode reader
  • Solid steel cabinet frame
  • Powerful software platform
  • Standard API interface available
  • Cloud server management system
  • Both indoor and outdoor version locker available
  • CE and FCC certifications

Password Postal Smart Parcel Delivery Locker For E-Commerce 15.6 Inch Stainless Steel 0



Password Postal Smart Parcel Delivery Locker For E-Commerce 15.6 Inch Stainless Steel 1


No. Components Specification
1 Computer CPU: RK3288 Cortex-A17 QUAD core 1.8GHz, wifi
RAM 2G; storage 16G INAND FLASH, support for external expansion 512G
Operating system Android 5.1
4*USB, 4*RS232, 1*ADC; Support PCI-E 3G/4G, Intergrate LVDS/eDP/Ethernet/HDMI/WIFI; Support 4K and H.265 decoding.
2 15.6“ Touch Screen Resolution: 1920x1080; Ratio: 16:9
Colours 16.7 million; Brightness 300cd/m2
Response Time: 25ms; View angle: 178°/178°
Capacitive touch screen, touch glass thickness 2.4±0.2mm, surface hardness ≥7H
3 Barcode Reader Honeywell 3310, scan both 1D and 2D barcode
4 Electronic Lock System Secured lockers with electronic lock, open and close are controlled by password/PIN code
5 Speakers Left and right bi-channel; Amplified output; Multimedia speaker
6 Steel Enclosure Durable steel frame, power coated; easy to install and operate; custom color available
Optional wedge anchor to secure locker on floor
7 Optional Configuration Multi Languages, 22" Ads LCD Display, Card Reader, Coin Acceptor, Bill Acceptor, Custom Logo on Locker Body
8 Packing Palletized with foam protection
9 Storage/Working Condition Storage Temperature -10℃ -- 50 ℃; Working Temperature 0℃-- 50 ℃
Storage/Working Humidity 10 -- 90﹪
10 Certificates CE, FCC




Locker Cabinet Design
The parcel locker and each compartment are available in both standard size and custom size. They can get custom size in width, length and depth.
Our locker cabinets are available in the widest selection of modular, customizable indoor and outdoor retail lockers to accommodate more deliveries and returns.
Optionally parcel lockers can have
- emergency unlock system and manual open function
- cooling or heating compartment
- video cameras
- roof and solar power system
